Description
xThe NiPoGi H1 Mini PC is powered by the AMD Ryzen 7 6800H processor, featuring 8 cores and 16 threads with a max boost clock of up to 4.7GHz. It comes equipped with integrated Radeon 680M graphics, offering excellent performance for graphics-intensive tasks. This compact computer is ideal for video and photo editing, office productivity, 4K video playback, casual gaming, and home theater use.
AMD Ryzen 7 6800H
x| Processor | AMD Ryzen™ 7 6800H Processor, 8 Cores/16 Threads, 16 MB L3 cache, base frequency 3.2GHz, maximum acceleration clock frequency (Turbo) 4.7GHz |
| Graphics | AMD Radeon™ 680M (Graphics Frequency 2200MHz, Graphics cores : 12) |
| Memory | 32GB (8GB*2) LPDDR5 6400 MT/s (on board) |
| Storage | 1TB M.2 2280 NVMe PCIe3.0 x4 SSD (M.2 2280 Slot*2, supports M.2 NVMe PCIe3.0/4.0 SSD, SATA SSD not supported, up to 4TB) |
| Wireless Connectivity | WiFi 6, BT5.2 (M.2 2230） |
| Video Output | HDMI 2.0*1 (4K@60Hz） DP1.4*1 (4K@60Hz) USB3.2 Gen2 Type-C*1 (4K@60Hz) |
| Audio Output |
HDMI 2.0 * 1 USB3.2 Gen2 Type-C*1 DP1.4* 1 3.5mm Phone Jack * 1 |

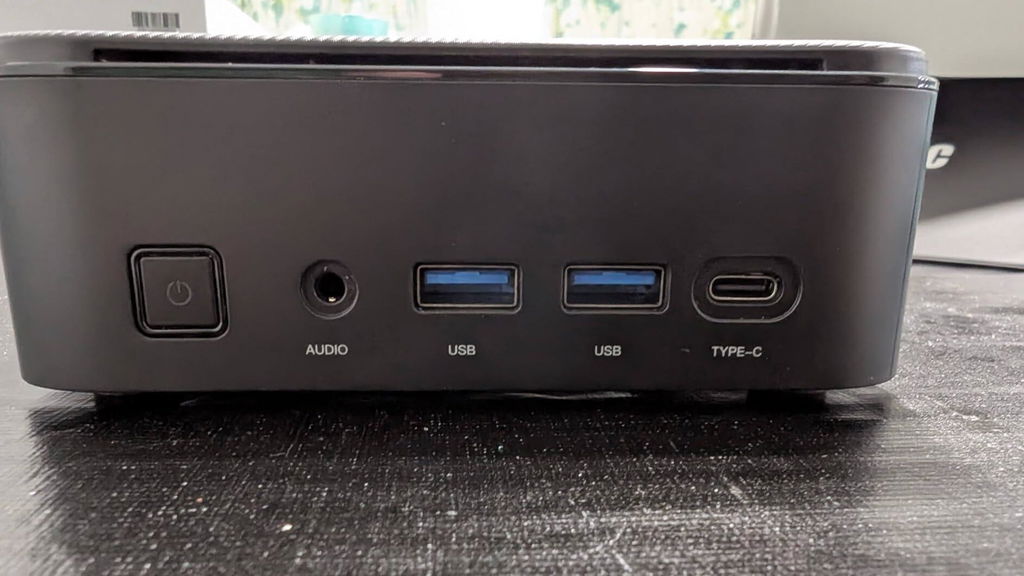

| Ports & Buttons | 10M/100M/1000Mbps/2.5Gbps adaptive RJ45 Gigabit Ethernet Port *1 USB3.2 Gen2 Type-A Port *2 (front port) USB3.2 Gen1 Type-A Port*4 (behind port) USB3.2 Gen2 Type-C *1 (Support DP1.4, 4K@60Hz, maximum 10Gbps data transfer) DC IN *1 HDMI 2.0 *1 DP1.4 *1 3.5mm Audio Jack *1 Power Button *1 |
| Power | DC 19V/3.42A，DC Header 5.5*2.1mm |
| System | Windows 11 Pro |
| Dimensions | 129*129*51mm |
AMD Ryzen 7 7735HS
x| Processor | AMD Ryzen™ 7 7735HS Processor, 8 Cores/16 Threads, 16 MB L3 cache, base frequency 3.2GHz, maximum acceleration clock frequency (Turbo) 4.75GHz |
| Graphics | AMD Radeon™ 680M (Graphics Frequency 2200MHz, Graphics cores : 12) |
| Memory | 16GB (8GB*2) LPDDR5 5500 MT/s (on board) |
| Storage | 512GB M.2 2280 NVMe PCIe3.0 x4 SSD (M.2 2280 Slot*2, supports M.2 NVMe PCIe3.0/4.0 SSD, SATA SSD not supported, up to 4TB) |
| Wireless Connectivity | WiFi 6, BT5.2 (M.2 2230） |
| Video Output | HDMI 2.0*1 (4K@60Hz） DP1.4*1 (4K@60Hz) USB3.2 Gen2 Type-C*1 (4K@60Hz) |
| Audio Output |
HDMI 2.0 * 1 USB3.2 Gen2 Type-C*1 DP1.4* 1 3.5mm Phone Jack * 1 |
| Ports & Buttons | 10M/100M/1000Mbps/2.5Gbps adaptive RJ45 Gigabit Ethernet Port *1 USB3.2 Gen2 Type-A Port *2 (front port) USB3.2 Gen1 Type-A Port*4 (behind port) USB3.2 Gen2 Type-C *1 (Support DP1.4, 4K@60Hz, maximum 10Gbps data transfer) DC IN *1 HDMI 2.0 *1 DP1.4 *1 3.5mm Audio Jack *1 Power Button *1 |
| Power | DC 19V/3.42A，DC Header 5.5*2.1mm |
| System | Windows 11 Pro |
| Dimensions | 129*129*51mm |
FAQ
xDoes H1 Plus come with a pre-installed system?
Except for the barebone, all other configurations are pre-installed with the Win11 Pro system.
How to replace the memory and SSD of H1？
How to configure power-on auto-start for the H1？
How to configure power-on auto-start for the H1？
BIOS Setup Wake-on-LAN (Applicable to H1)
Mini PC H1
AMD Ryzen™ 7 6800H
Wi-Fi 6 Ensures Fast, Stable Performance
More Efficient Heat Dissipation
Triple 4K Display
Compatible with multiple systems
Space-saving and portable
NIPOGI Mini PC H1
Multiple interfaces
Bring the world with you
