Description
xThe NiPoGi H2 Mini PC is powered by the Intel® Core™ i5-14450HX processor, featuring 10 cores and 16 threads with a max boost clock of up to 4.8GHz. It comes equipped with integrated Intel® UHD Graphics for 14th Gen Intel® Processors, offering excellent performance for graphics-intensive tasks. This compact computer is ideal for video and photo editing, office productivity, 4K video playback, casual gaming, and home theater use.
H2 Intel® Core™ i5-14450HX
x| Processor | Intel® Core™ i5-14450HX, 10 Cores(6P+4E)/16 Threads, 20MB Intel® Smart Cache, base frequency 2.4GHz, maximum acceleration clock frequency (Turbo) 4.8GHz |
| Graphics | Intel® UHD Graphics for 14th Gen Intel® Processors(Graphics Max Dynamic Frequency 1.50GHz, Execution Units 16EUs) |
| Memory | 32GB (16GB*2)DDR4 3200MHz (DDR4 SO-DIMM Slot*2, up to 64GB) |
| Storage | 1TB M.2 2280 NVMe PCIe4.0×4 SSD (2*M.2 2280 Slot, M.2 2280 SATA&NVMe Slot×1; M.2 2280 NVMe Slot×1, single hard disk interface supports up to 2TB) |
| Wireless Connectivity | WiFi 6+BT5.2 |
| Video Output | HDMI 2.0*1 (4K@60Hz） DP1.4*1 (4K@60Hz) USB3.2 Gen 2 Type-C*1 (4K@60Hz) |
| Audio Output | HDMI 2.0 *1 DP1.4 *1 USB3.2 Gen 2 Type-C*1 3.5mm Phone Jack * 1 |

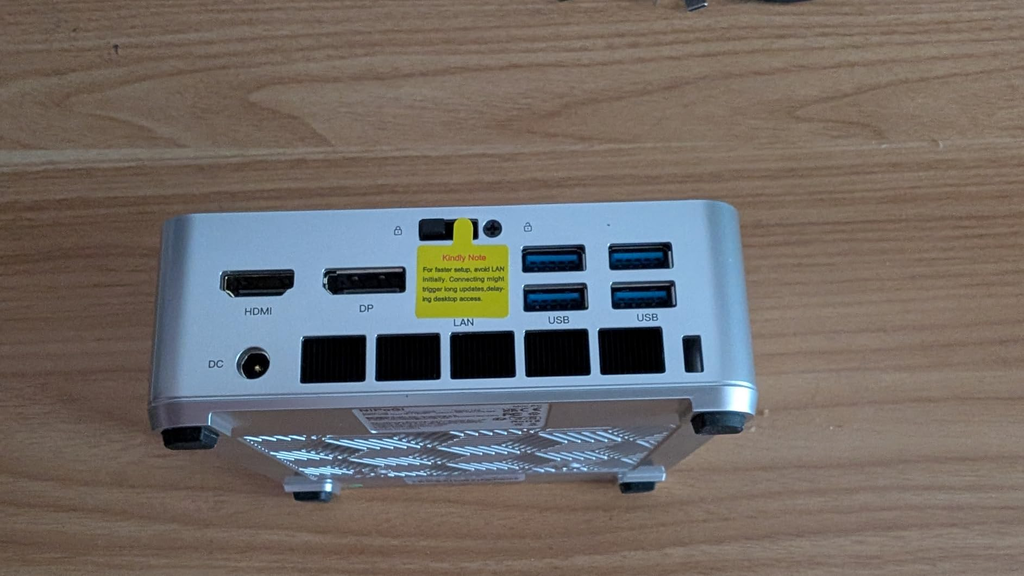

| Ports & Buttons | 10M/100M/1000Mbps adaptive RJ45 Gigabit Ethernet Port ×1 USB3.2 Gen2 Type-A Port *2 (front port) USB3.2 Gen1 Type-A Port*4 (behind port) USB3.2 Gen 2 Type-C *1 (Support DP1.4, 4K@60Hz, maximum 10Gbps data transfer, PD 15W output) DC IN *1 HDMI 2.0 *1 DP1.4 *1 3.5mm Audio Jack *1 Power Button *1 |
| Power | DC 19V/6.32A，DC Header 5.5*2.1mm |
| System | Windows 11 Pro |
| Dimensions | 128.2*128.2*44mm |
H2 Intel® Core™ i7-14650HX
x| Processor | Intel® Core™ i7-14650HX, 16 (8P+8E)/24 Threads, 30MB Intel® Smart Cache, base frequency 2.2GHz, maximum acceleration clock frequency (Turbo) 5.2GHz |
| Graphics | Intel® UHD Graphics for 14th Gen Intel® Processors(Graphics Max Dynamic Frequency 1.60GHz, Execution Units 16EUs) |
| Memory | 32GB (16GB*2)DDR4 3200MHz Dual Channel(DDR4 SO-DIMM Slot*2, up to 64GB) |
| Storage | 1TB M.2 2280 NVMe PCIe4.0×4 SSD (2*M.2 2280 Slot, M.2 2280 SATA&NVMe PCIe3.0×4 Slot×1; M.2 2280 NVMe PCIe4.0×4 Slot×1, single hard disk interface supports up to 2TB) |
| Wireless Connectivity | WiFi 6E+BT5.2 |
| Video Output | HDMI 2.0*1 (4K@60Hz） DP1.4*1 (4K@120Hz) USB3.2 Gen 2 Type-C*1 (4K@120Hz) |
| Audio Output | HDMI 2.0 *1 DP1.4 *1 USB3.2 Gen 2 Type-C*1 3.5mm Phone Jack * 1 |
| Ports & Buttons | 10M/100M/1000Mbps adaptive RJ45 Gigabit Ethernet Port ×1 USB3.2 Gen2 Type-A Port *2 (front port) USB3.2 Gen1 Type-A Port*4 (behind port) USB3.2 Gen 2 Type-C *1 (Support DP1.4, 4K@120Hz, maximum 10Gbps data transfer, PD 15W output) DC IN *1 HDMI 2.0 *1 DP1.4 *1 3.5mm Audio Jack *1 Power Button *1 |
| Power | DC 19V/6.32A，DC Header 5.5*2.1mm |
| System | Windows 11 Pro |
| Dimensions | 128.2*128.2*44mm |
H2 Intel® Core™ i9-14900HX
x| Processor | Intel® Core™ i9-14900HX, 24 (8P+16E)/32 Threads, 36MB Intel® Smart Cache, base frequency 2.2GHz, maximum acceleration clock frequency (Turbo) 5.8GHz |
| Graphics | Intel® UHD Graphics for 14th Gen Intel® Processors(Graphics Max Dynamic Frequency 1.65GHz, Execution Units 32EUs) |
| Memory | 32GB (16GB*2)DDR4 3200MHz Dual Channel(DDR4 SO-DIMM Slot*2, up to 64GB) |
| Storage | 1TB M.2 2280 NVMe PCIe4.0×4 SSD (2*M.2 2280 Slot, M.2 2280 SATA&NVMe PCIe3.0×4 Slot×1; M.2 2280 NVMe PCIe4.0×4 Slot×1, single hard disk interface supports up to 2TB) |
| Wireless Connectivity | WiFi 6E+BT5.2 |
| Video Output | HDMI 2.0*1 (4K@60Hz） DP1.4*1 (4K@120Hz) USB3.2 Gen 2 Type-C*1 (4K@120Hz) |
| Audio Output | HDMI 2.0 *1 DP1.4 *1 USB3.2 Gen 2 Type-C*1 3.5mm Phone Jack * 1 |
| Ports & Buttons | 10M/100M/1000Mbps adaptive RJ45 Gigabit Ethernet Port ×1 USB3.2 Gen2 Type-A Port *2 (front port) USB3.2 Gen1 Type-A Port*4 (behind port) USB3.2 Gen 2 Type-C *1 (Support DP1.4, 4K@120Hz, maximum 10Gbps data transfer, PD 15W output) DC IN *1 HDMI 2.0 *1 DP1.4 *1 3.5mm Audio Jack *1 Power Button *1 |
| Power | DC 19V/6.32A，DC Header 5.5*2.1mm |
| System | Windows 11 Pro |
| Dimensions | 128.2*128.2*44mm |
FAQ
xAll Drivers Download Link:
WiFi and Bluetooth Drivers Download Link:
NiPoGi H2 Mini PC

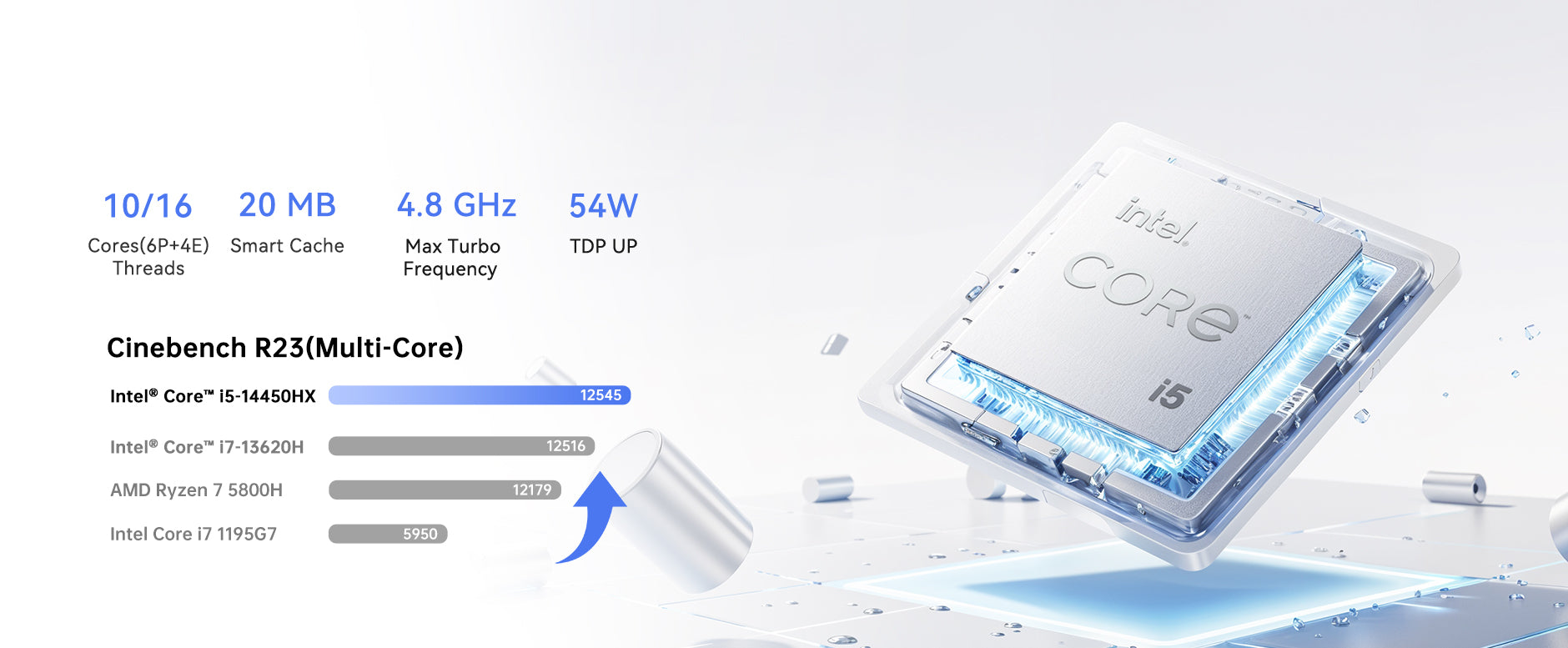

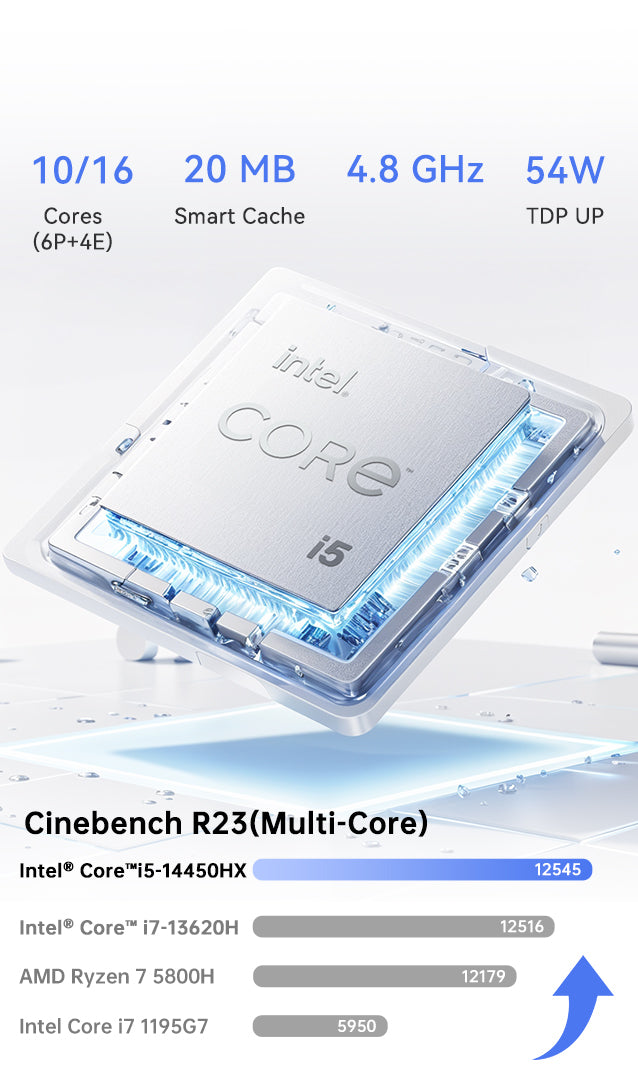

Intel® Core™ i5-14450HX
Intel UHD Graphics
Flexible Expansion
Enhanced High-Speed Silent Centrifugal Fan
4K Triple Dispaly
Reasons for Motivation

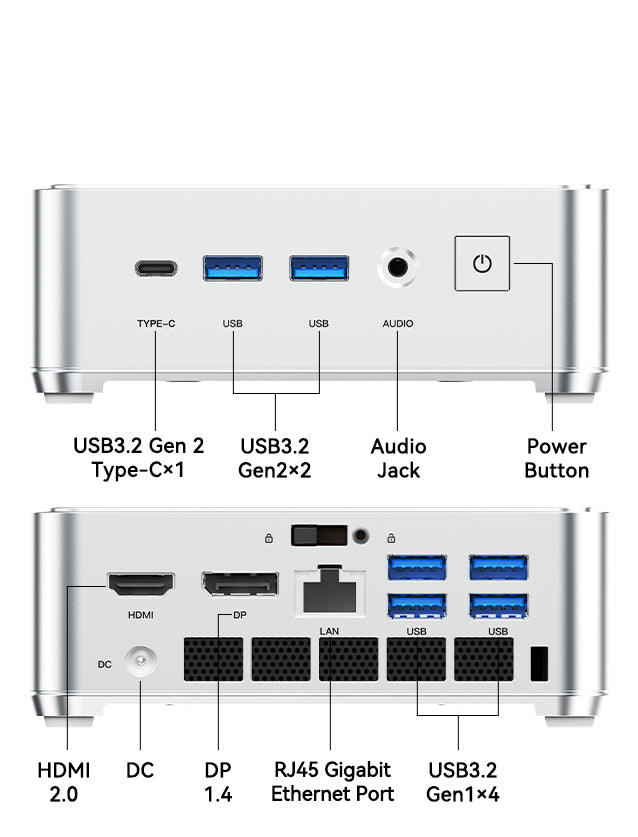

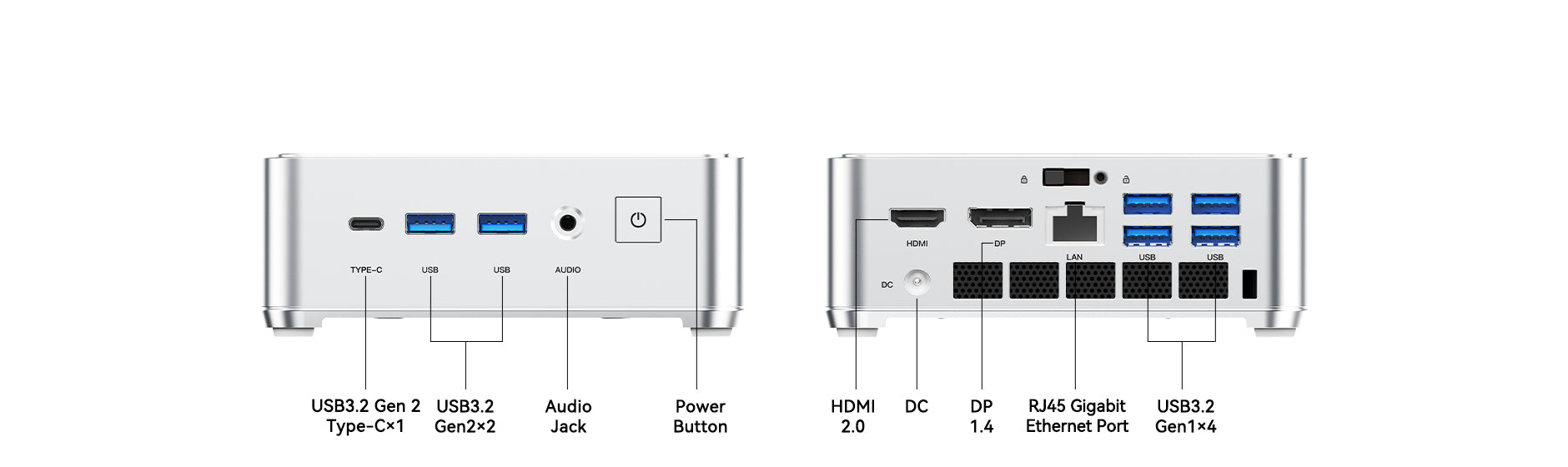

Premium Multi-Interface Design
For Different Scenarios
Hidden Wall Mount
