Description
xThe NiPoGi H2 Mini PC is powered by the Intel® Core™ i7-13620H processor, featuring 10 cores and 16 threads with a max boost clock of up to 4.3GHz. It comes equipped with integrated Intel® UHD Graphics, offering excellent performance for graphics-intensive tasks. This compact computer is ideal for video and photo editing, office productivity, 4K video playback, casual gaming, and home theater use.
Specification
x| Processor | Intel® Core™ i7-13620H, 10 Cores/16 Threads, 24MB Intel® Smart Cache, base frequency 2.4GHz, maximum acceleration clock frequency (Turbo) 4.9GHz |
| Graphics | Intel® UHD Graphics for 13th Gen Intel® Processors(Graphics Max Dynamic Frequency 1.50GHz, Execution Units 64EUs) |

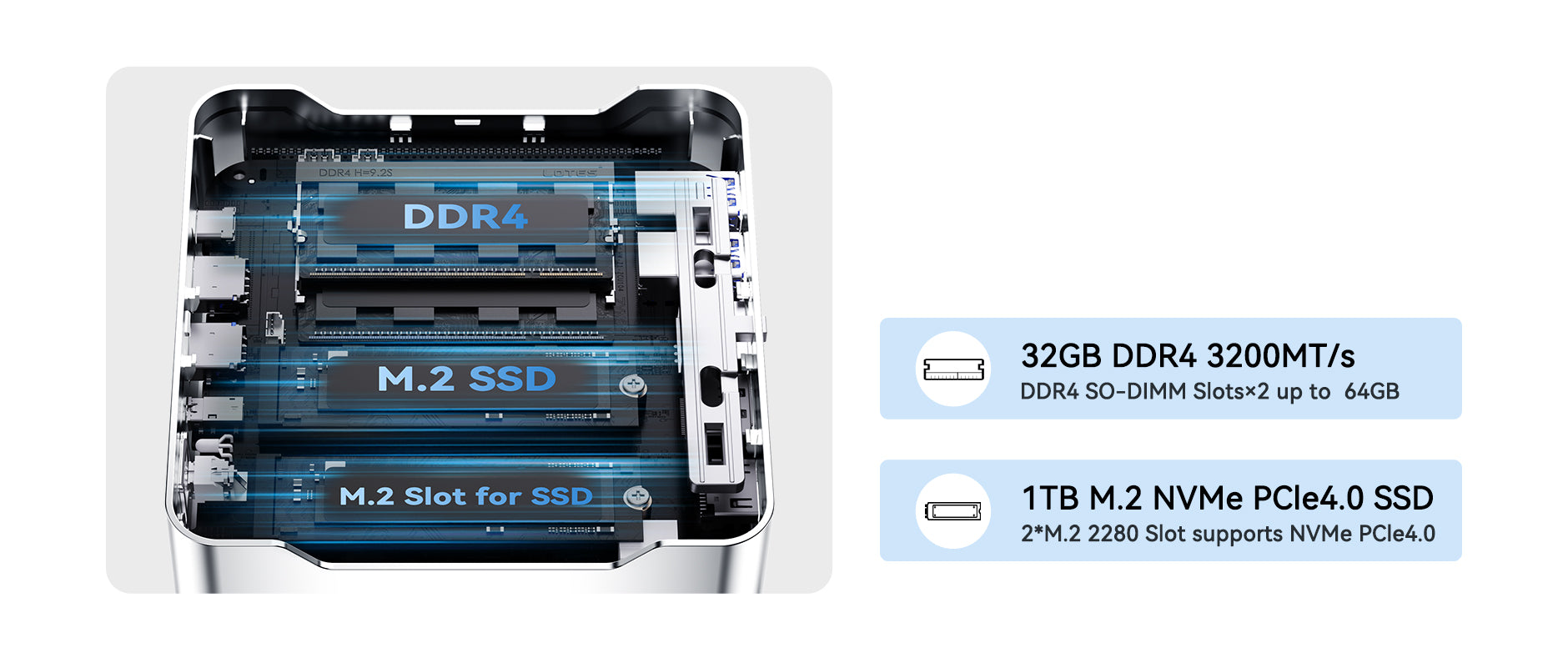

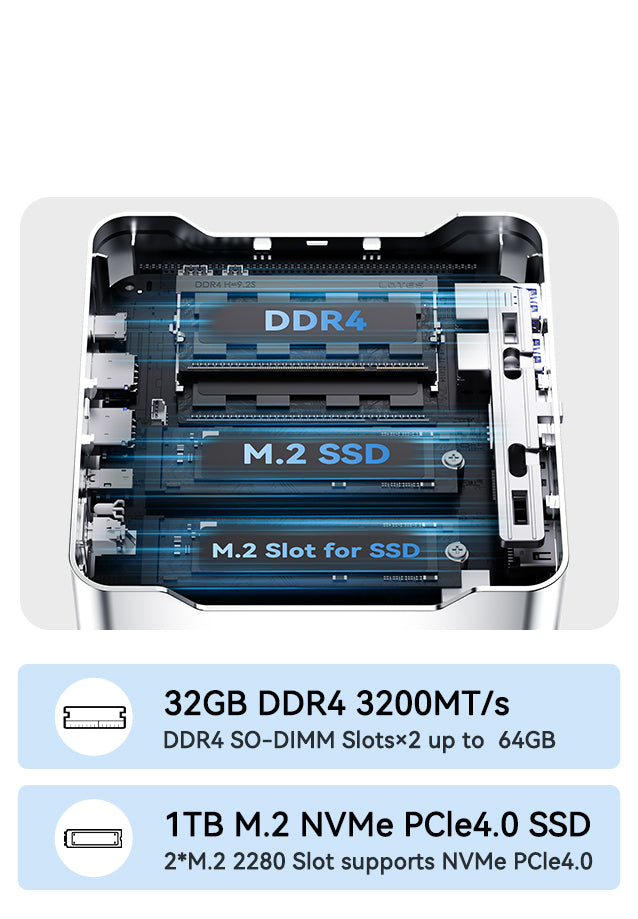

| Memory | 32GB (16GB*2)DDR4 3200MHz (DDR4 SO-DIMM Slot*2, up to 64GB) |
| Storage | 1TB M.2 2280 NVMe PCIe4.0×4 SSD (2*M.2 2280 Slot, M.2 2280 SATA&NVMe Slot×1; M.2 2280 NVMe Slot×1, single hard disk interface supports up to 2TB) |
| Wireless Connectivity | WiFi 6+BT5.2 |
| Video Output | HDMI 2.0*1 (4K@60Hz） DP1.4*1 (4K@120Hz) USB4 Type-C*1 (4K@120Hz) |
| Audio Output | HDMI 2.0 *1 DP1.4 *1 USB4 Type-C*1 3.5mm Phone Jack * 1 |

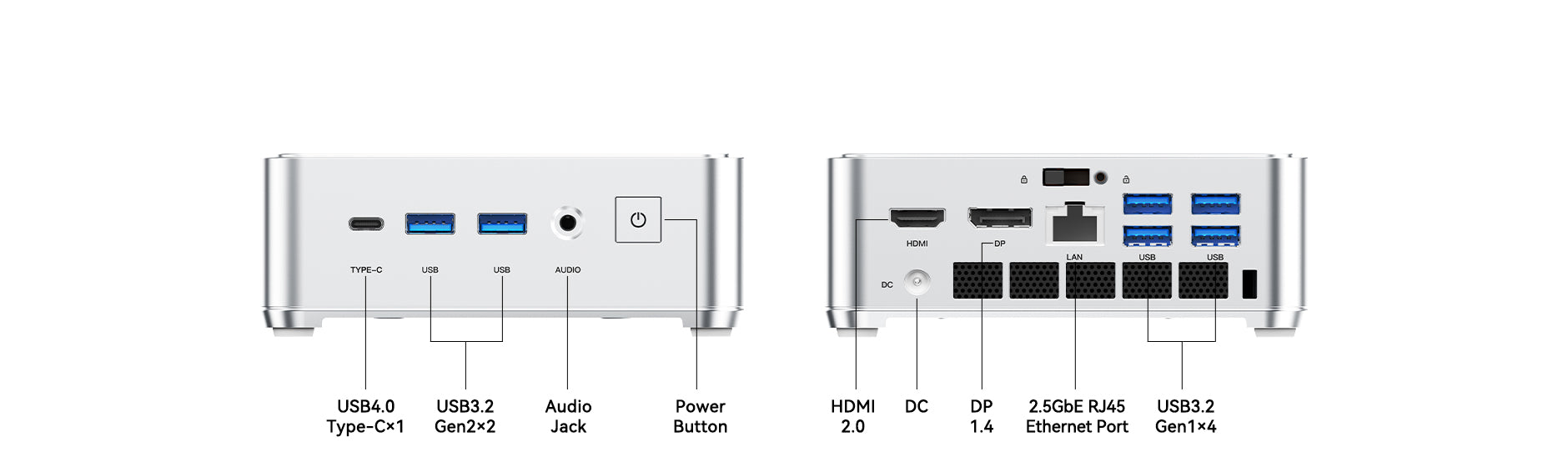

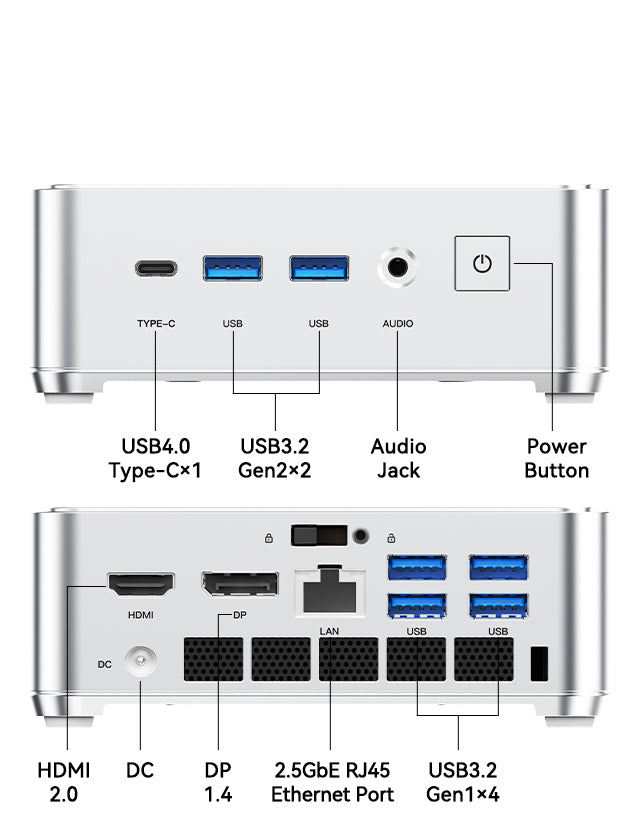

| Ports & Buttons | 2.5Gbps (10M/100M/1000Mbps adaptive) LAN Port *1 USB3.2 Gen2 Type-A Port *2 (front port) USB3.2 Gen1 Type-A Port*4 (behind port) USB4 Type-C *1 (Support DP1.4, 4K@120Hz, maximum 40Gbps data transfer, PD 15W output) DC IN *1 HDMI 2.0 *1 DP1.4 *1 3.5mm Audio Jack *1 Power Button *1 |
| Power | DC 19V/6.32A，DC Header 5.5*2.1mm |
| System | Windows 11 Pro |

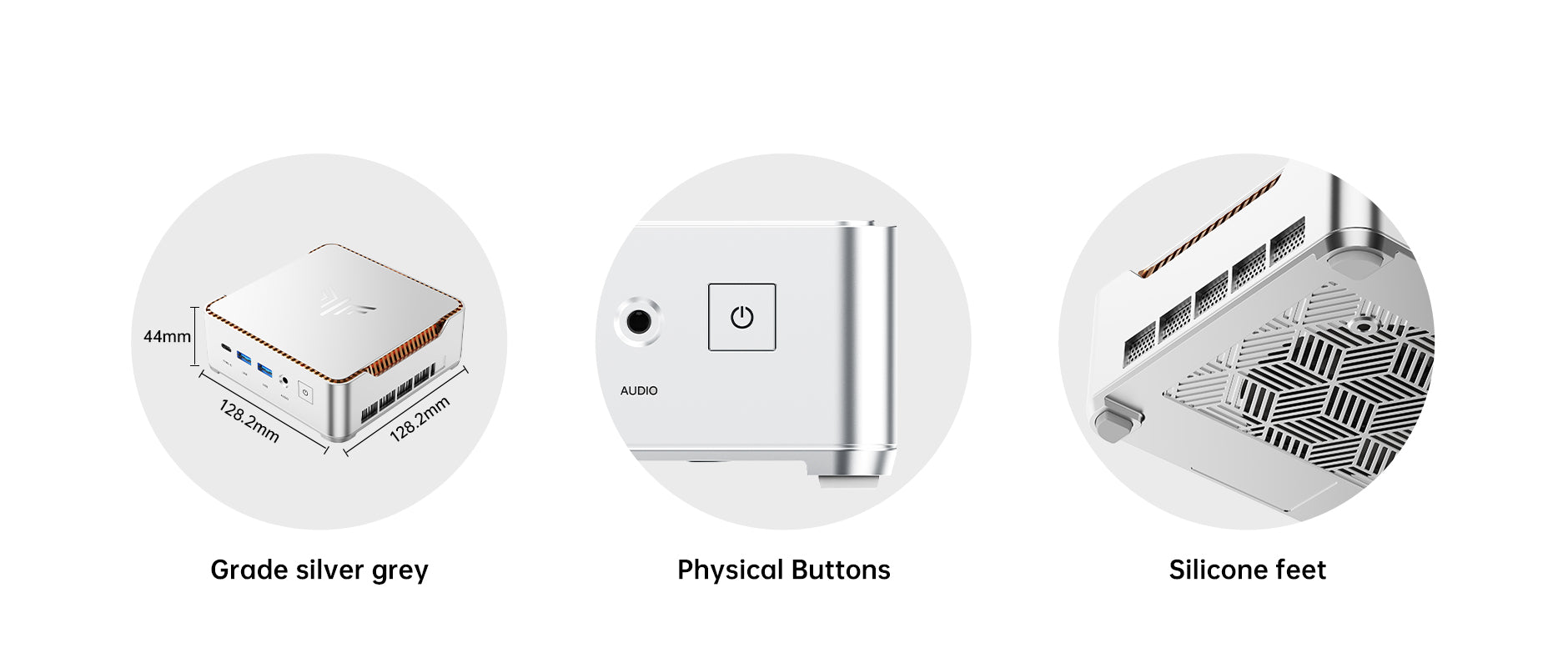

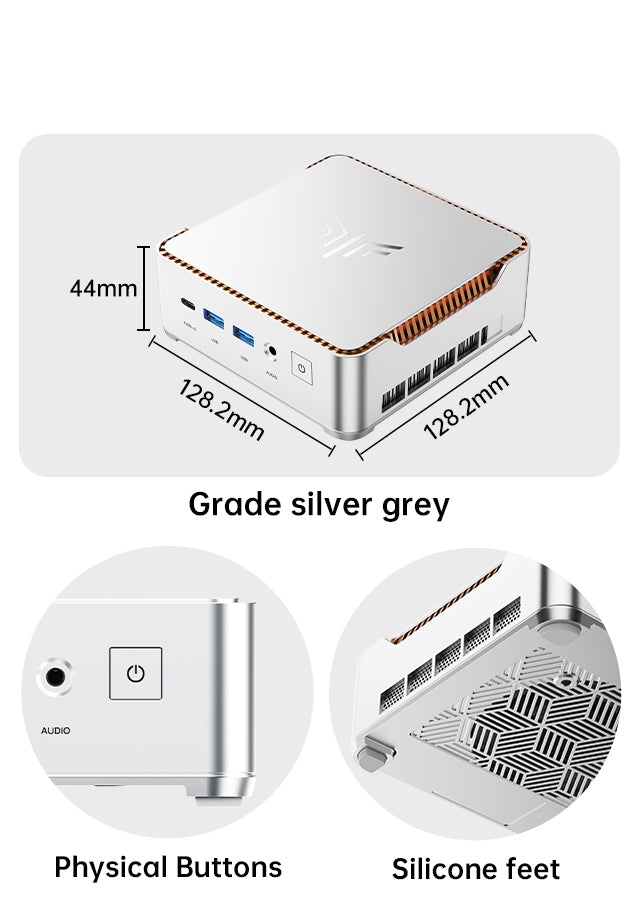

| Dimensions | 128.2*128.2*44mm |
FAQ
xAll Drivers Download Link:
WiFi and Bluetooth Drivers Download Link:

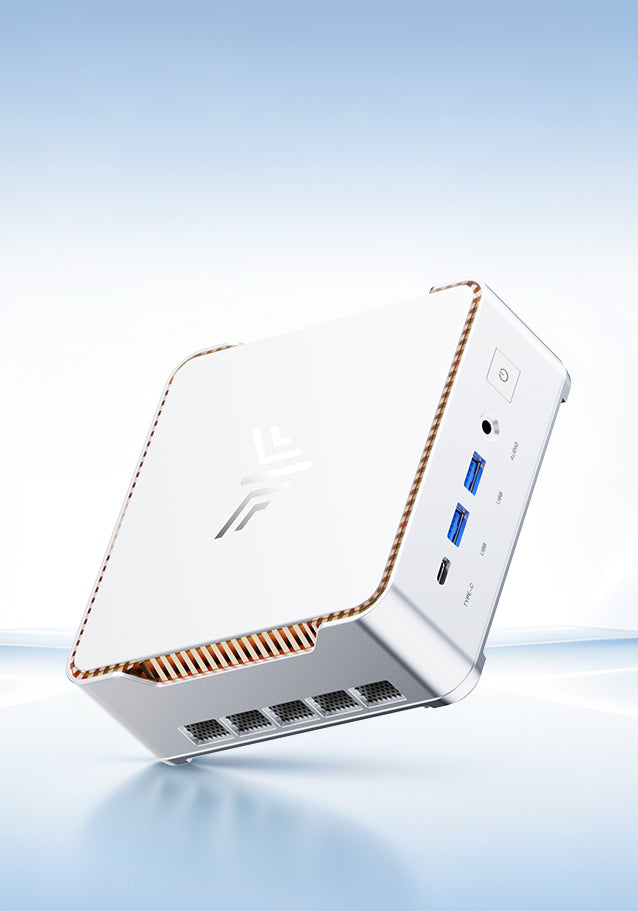

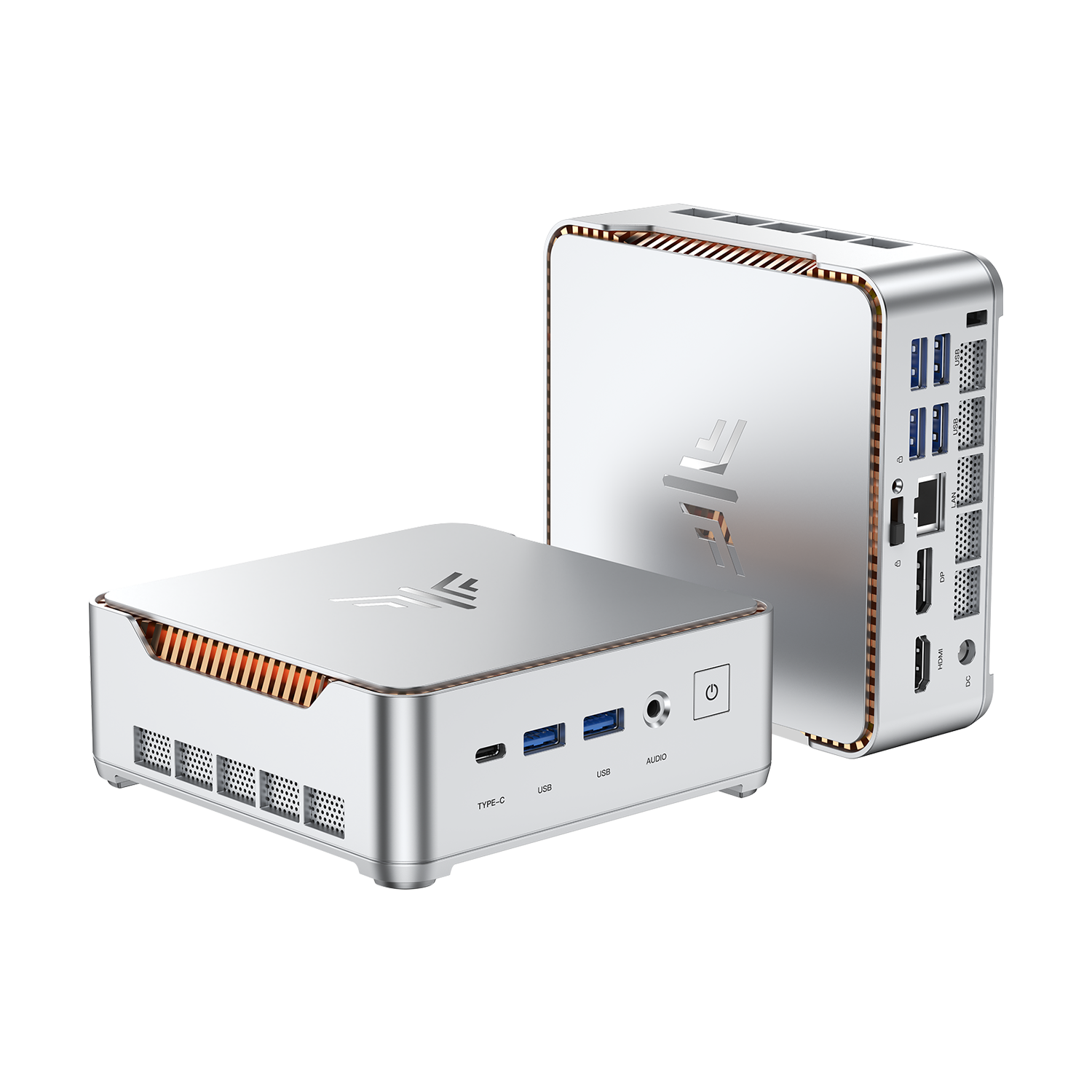

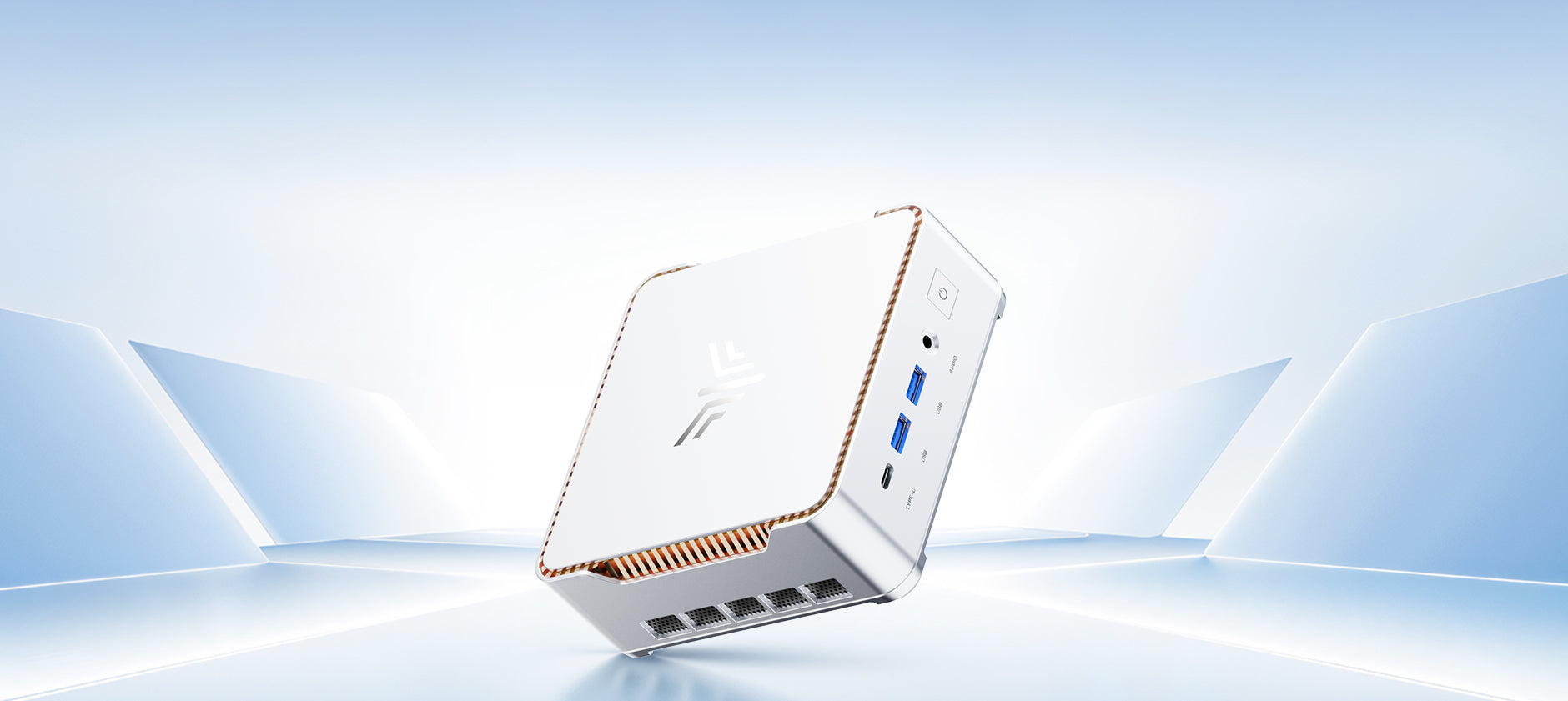

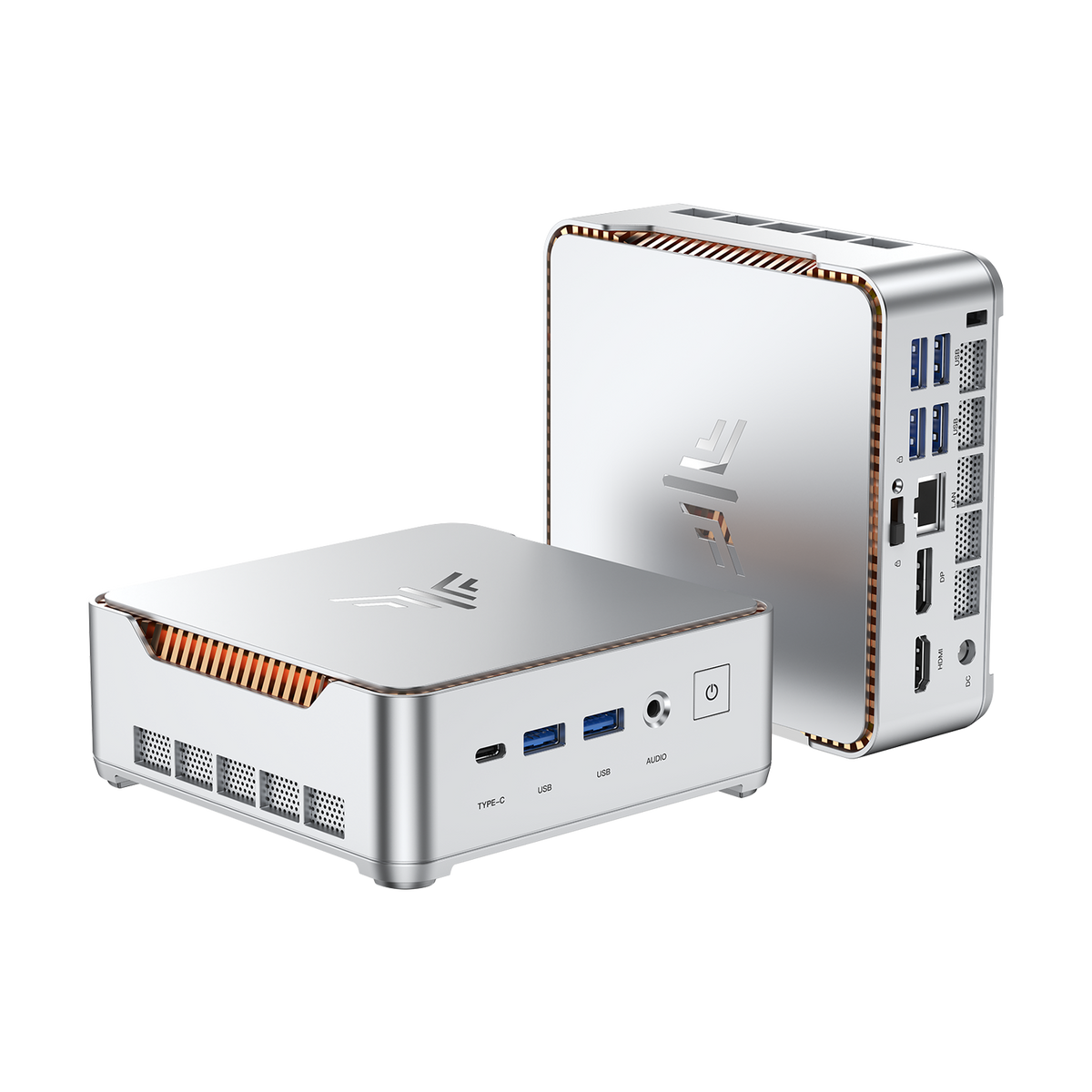

NiPoGi H2 13620H Mini PC
Intel® Core™ i7-13620H
Intel UHD Graphics
Flexible Expansion

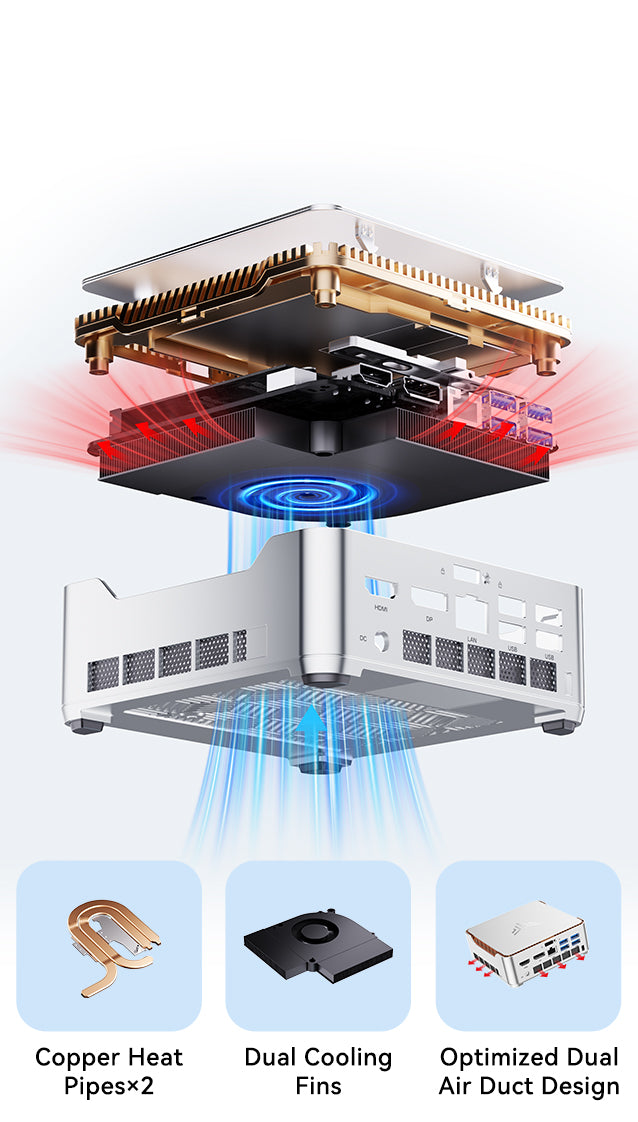

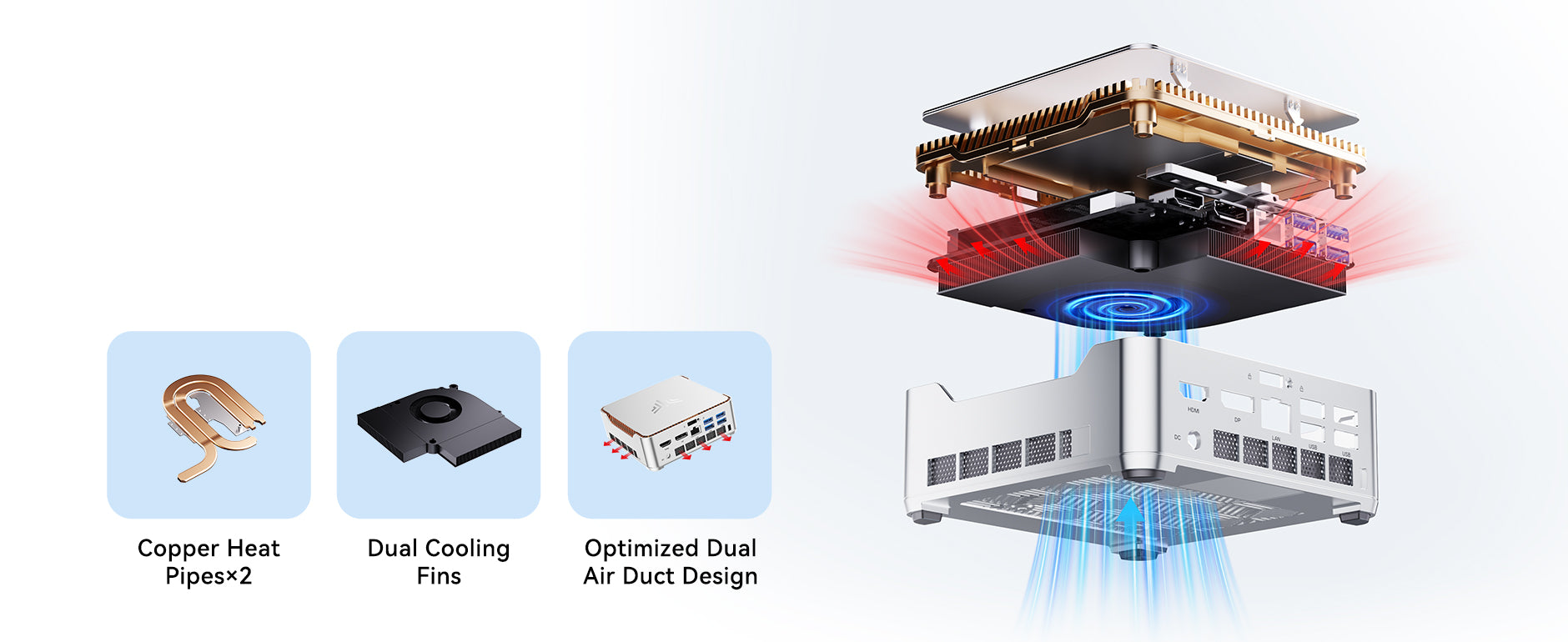

Enhanced High-Speed Silent Centrifugal Fan

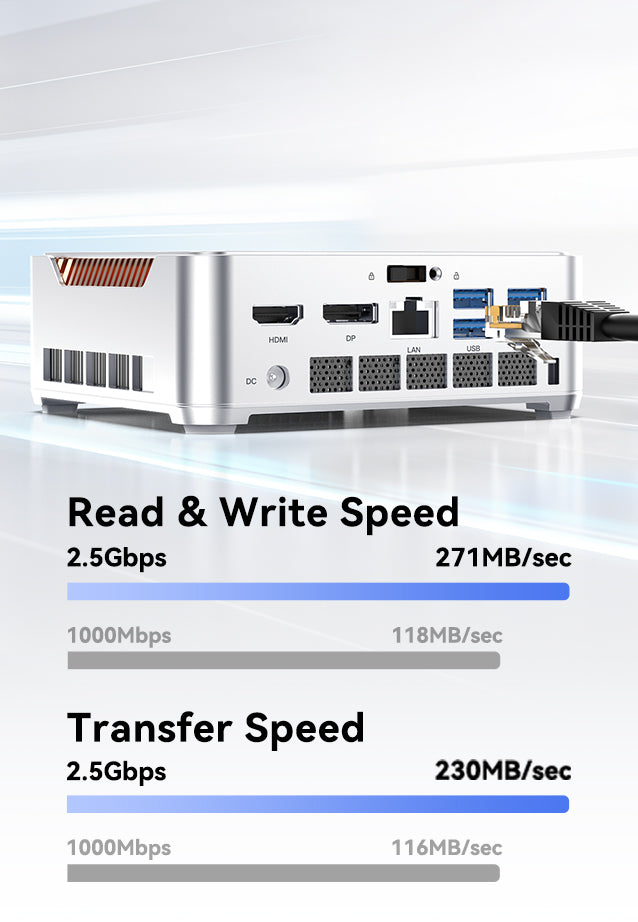

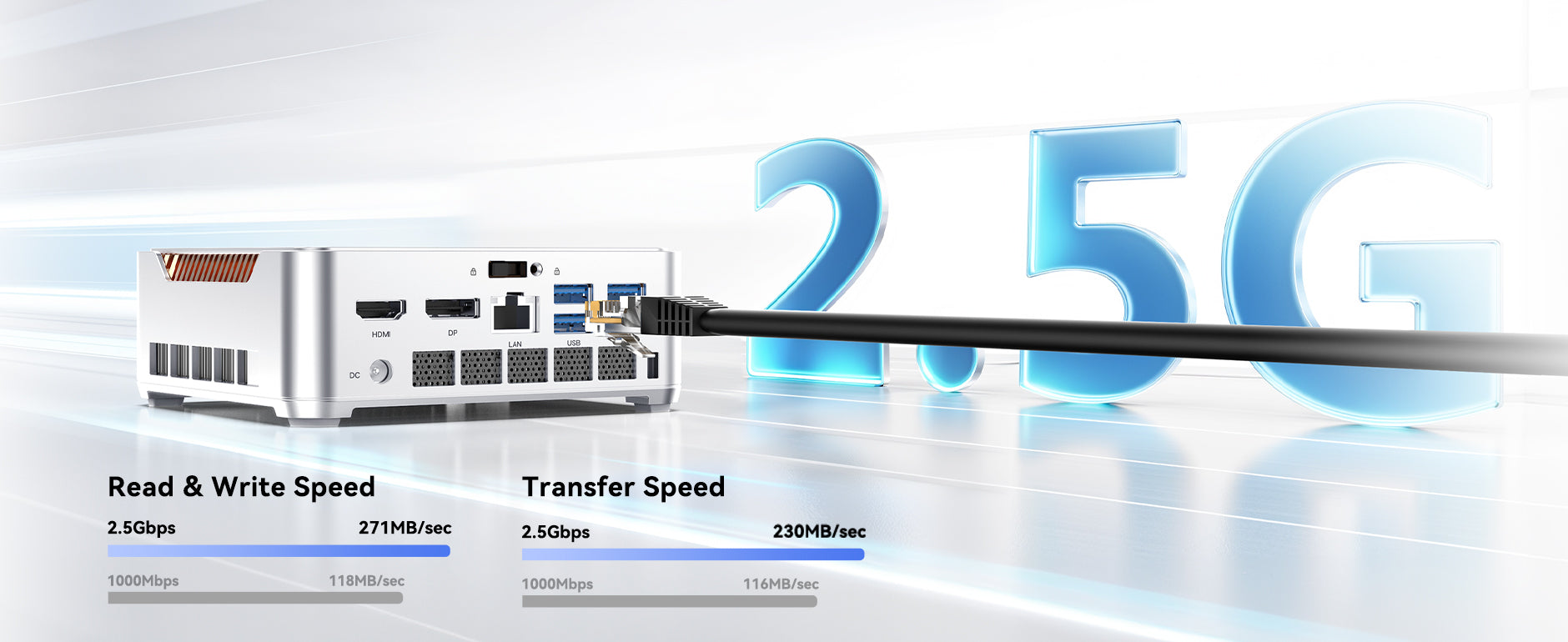

2.5G High-Speed Ethernet
4K Triple Dispaly
Reasons for Motivation
Premium Multi-Interface Design
For Different Scenarios

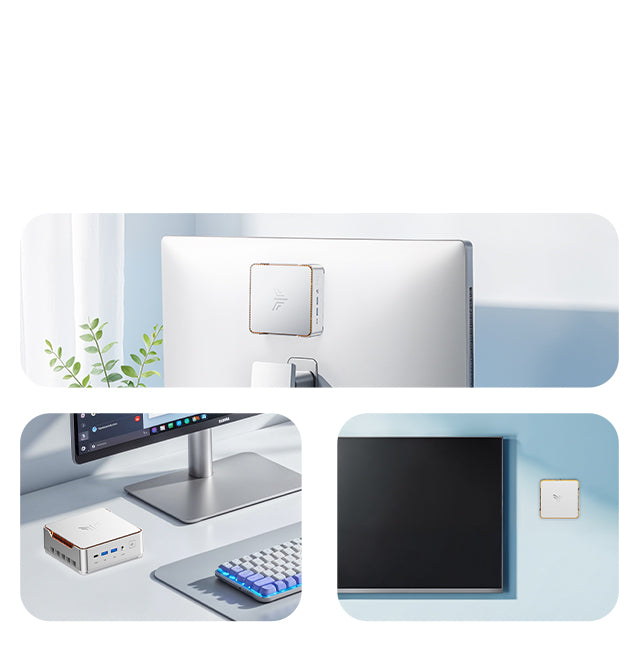

Hidden Wall Mount
